Up to 50th Order
Description

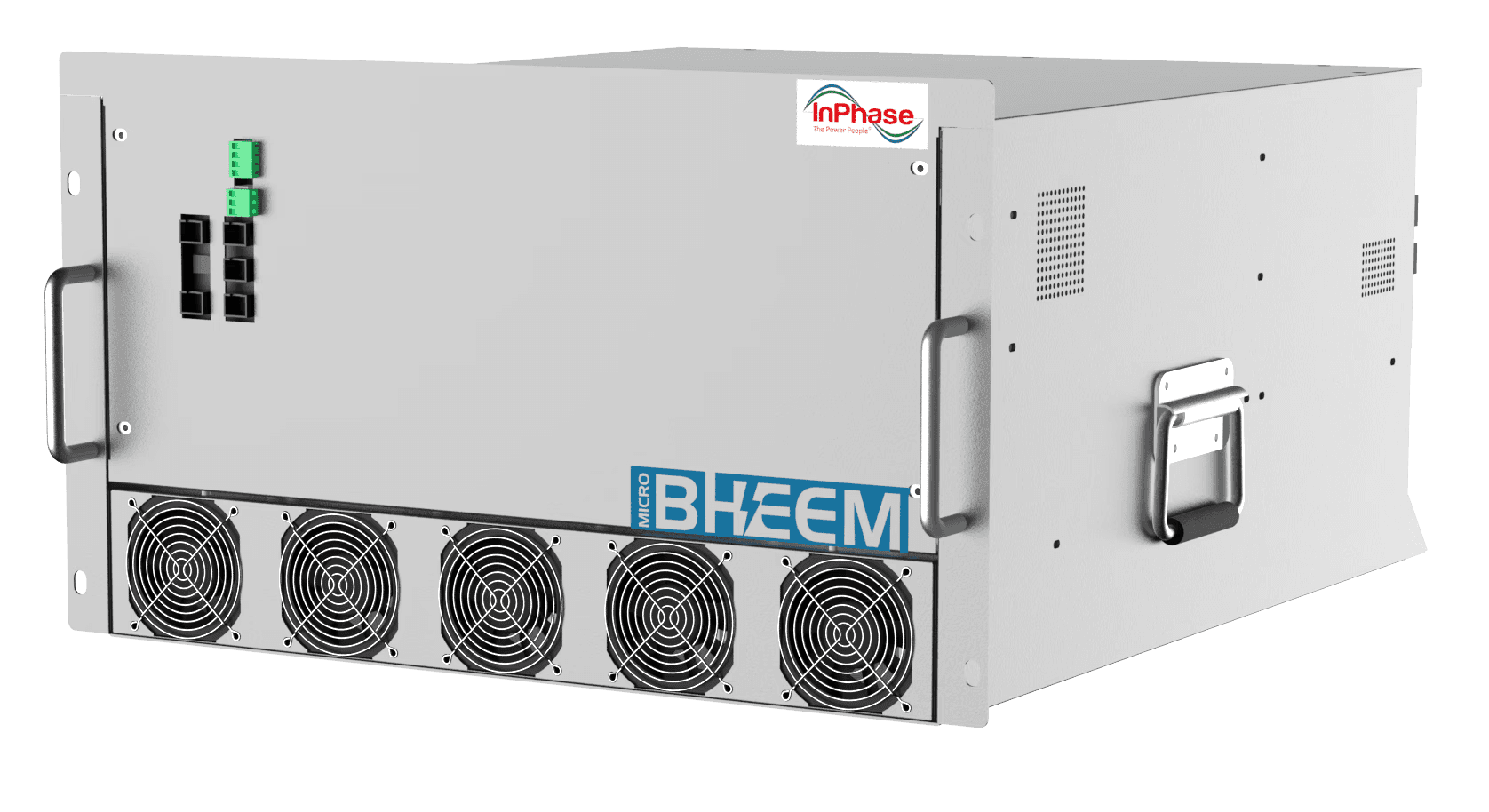

Modular Active Harmonic Filter (AHF) is an advanced, electronics-based system designed to eliminate harmful harmonics from electrical networks. Unlike passive filters, Modular AHF dynamically detects and cancels harmonic currents in real time, improving power quality and protecting sensitive equipment. Built on Inphase’s , Modular AHF supports expansion up to 32 units, offers real-time harmonic mitigation up to the 50th order, and includes reactive power compensation and load balancing. Whether the load requires 30A, 100A, or 210A, the Modular AHF adapts instantly, ensuring consistent and efficient performance. It is ideal for industries like steel, automotive, textiles, data centers, and more where non-linear loads generate harmonics and cause equipment inefficiencies or failures.
01
3-Level IGBT
Advanced 3-level inverter technology ensures lower switching losses and superior waveform quality.
02
Extremely Efficient – 98%
High-efficiency design delivers up to 98% performance, reducing energy loss and operating cost.
03
Comprehensive Load Balancing Capabilities
Actively balances loads across phases for improved stability and optimized system performance.
04
Flexible Operation Mode
Offers multiple modes of operation for seamless adaptation to diverse electrical conditions.
05
Smart Integration
Designed for smooth communication and compatibility with modern power management systems.
06
Real-time adaptive filtering technology
Automatically adjusts filtering parameters in real time to maintain consistent performance under varying loads.
07
Robust Construction for Harsh Environments
Engineered with industrial-grade materials to ensure durability and reliable operation in tough conditions.
